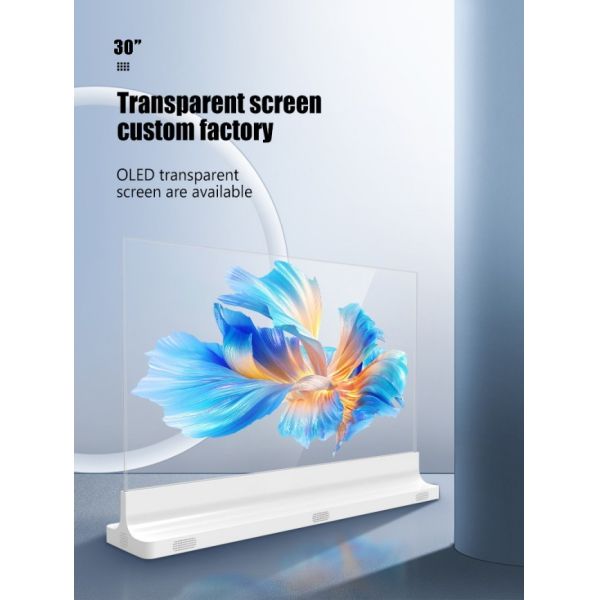

30 Inch 60Hz Refresh Rate Clear OLED Display for Smooth Motion Reduced Shading Lagging
Clear OLED Display All-in-One Machine: Integrating Innovation with Interactivity
The Clear OLED Display all-in-one machine combines cutting-edge projective capacitive touch technology with versatile media playback and presentation functions. Its ergonomic design ensures comfortable and immersive touch interaction. The screen excels in both transparency and color performance, illuminating the space behind the display while seamlessly integrating with the environment. With high transparency and vibrant color reproduction, it also supports touch interaction—offering significant potential for customer engagement scenarios.
Utilizing OLED transparent screen technology, the device typically achieves a light transmittance of around 45%. This allows background objects to be clearly visible through the screen while content is displayed, creating a blended visual effect of virtual and real elements. For example, in a museum, visitors can view informational content on the screen while still clearly seeing the physical exhibit behind it, enhancing the immersive experience of the visit.
Native OLED Display Advantages
Ultra-High Contrast: Thanks to its self-emissive pixels, OLED delivers a contrast ratio exceeding 150,000:1, enabling pure black levels and superior detail representation far beyond LCD capabilities.
Wide Color Gamut & Accurate Color: Supports DCI-P3 wide color gamut (over 99.5%), offering high color accuracy ideal for high-resolution images, videos, and 3D models.
Fast Response: A rapid response time of just 0.1ms eliminates motion blur in dynamic scenes, making it suitable for highly interactive query scenarios.
Touch Support: Users can intuitively interact through gestures such as swiping and zooming.
Built-in Ambient Light Sensor: Automatically adjusts screen transparency and brightness (200–600 cd/m²) according to ambient lighting, ensuring content remains clearly visible in both bright and dim environments.
System Integration & Expandability: Typically equipped with Windows or Android systems and supports interfaces such as HDMI and USB, enabling seamless integration with mall CRM systems, museum AR guide platforms, and more for customized content display and data interaction.
| Transparent OLED — 30-inch Desktop Model(ZXTLCD-OLED300TD) |
| Parameters |
Panel
|
Size |
30 inches |
| Type |
OLED panel technology |
| Light transmittance |
43% |
| Dynamic contrast ratio |
135000:1 |
| Aspect ratio |
16:9 |
| Resolution |
1366x768 |
| Viewing angle |
R/L 120(min) U/D 120(min) |
| Brightness |
600/200 cd/m² (Center 1point,typ) |
| Number of pixels(HxVx3) |
921600 |
| Color gamut |
90% |
| Lifespan (typical value) |
30,000 hours |
| Operating time |
18 hours/7 days (dynamic images only) |
| Orientation |
Landscape orientation |
| Refresh rate |
120Hz |
| Interfaces |
Input |
HDM IInterfaces*1 |
| USB Interfaces*1 |
| Function |
Touch control |
None/Capacitive (optional) |
| Features |
Transparent display, pixel-level self-controlling backlight, ultra-fast response |
| Power/Environment |
Power supply |
Operating power supply: AC100-240V, 50/60Hz |
| Environment |
Temperature: 0-40°C, Humidity: 10%-80% |
| Dimension |
Display size |
664.3 × 373.5 mm |
| Panel size |
676.1 × 387.5 mm |
| Overall dimensions |
714 × 450 × 1067 mm |
| Power Consumption |
Typical value |
190W |
| DPM |
3W |
| Power off |
0.5W |
| Packaging |
Stand |
Main unit box, cover plate, base |
| Accessories |
Remote control, power cord |
Application Scenarios for 30-Inch Clear OLED Display
Commercial Retail: Embedded in display cases to overlay physical items with 3D product information (e.g., jewelry cuts, watch movements), assisting in sales guidance.
Cultural Exhibitions: Placed in front of artifacts or exhibits to display explanations or dynamic reconstructions (e.g., background on bronze ware in museums) without blocking the actual objects.
Public Services: Positioned beside service counters in government halls or hospital guidance desks to provide process inquiries, with a transparent design that maintains spatial openness.
Education & Research: Used alongside lab benches or training stations to display operational instructions combined with teaching tools (e.g., chemistry experiment steps, mechanical structure disassembly).
Smart Office: Deployed at corporate reception areas to showcase company profiles and visitor registration interfaces, blending seamlessly with spatial aesthetics.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
