Brand Name : ZXTLCD
Model Number : ZXTLCD-OLED-055-MP6A
Certification : CE/Rohs/FCC
Place of Origin : Guangdong, China
MOQ : 1
Price : negotiable
Payment Terms : L/C,T/T,MoneyGram,Western Union
Supply Ability : 2000 pcs per month
Delivery Time : 3-5 working days
Packaging Details : wooden case, carton, flight cases are optional
Screen Size : 55 inch
Type of backlight : OLED
Resolution : 1920*1080
refresh rate : 120Hz
Panel transparency : 43%(Typ.)
Standard colours : 1.07B(10bit)
Appearance Color : White/Black/Customization
Brightness : 200-600cd/㎡
Contrast ratio : 100000:1
Viewing Angle : 178 °, 178 °
Audio system : Built-in 10 W X 2 Speakers
Built-in wifi : 150Mbps 802.11n wifi integate
OS : Android or Windows optional
Touchscreen type : Projected Capacitive Touch screen
Touch points : 10 points
CPU : 14th Gen Intel I9-14900KF Proceesor
RAM : 16GB
SSD : 512GB
Discrete Graphics card : 12GB GIGABYTE 4070
Input Voltage : AC 100~240V, 50hz-60hz
Onboard interface : 1 X RJ45, 2 X HDMI, 4 X USB2.0
Protype : Desktop / Floor standing / Interactive(Optional)
I. Why Use Transparent OLED Displays?
Transparent OLED displays, being self-emissive, offer high transparency and superior image quality, providing new value to consumers.
II. Application Scenarios of Transparent OLED Displays?
Transparent OLED displays can be adapted to various fields, creating new markets and providing greater new value to customers.
Application Scenarios of Transparent OLED Displays—Transportation, Retail, Enterprise, Home
Using transparent OLED displays in vehicles will make designs more technologically advanced and save space;
Transparent OLED displays will provide customers with more convenient services;
Transparent OLED displays will provide a sense of openness, save space, and improve work efficiency;
Transparent OLEDs will give home decoration a high-end feel and enhance the value of buildings.
III. The Value of Transparent OLED Displays
1. Displays that integrate seamlessly with interior design
2. Displays that encourage customers to visit stores
3. Displays that provide customers with a comfortable experience

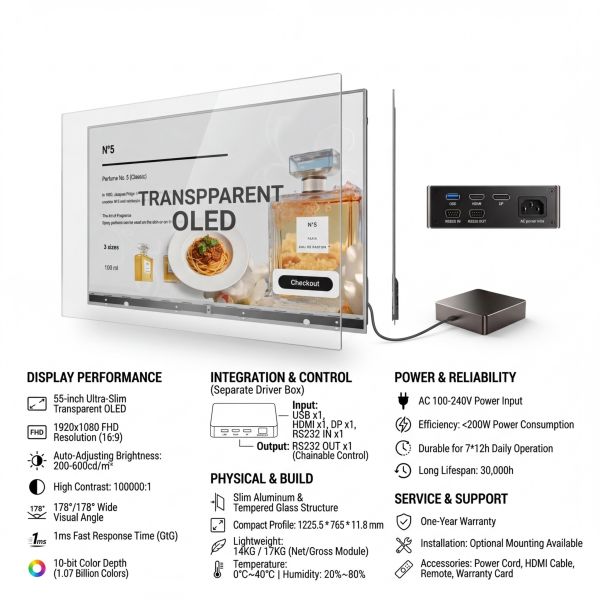

| 55 inch OLED module transparent display(ZXTLCD-055-MP6A) | |
| LCD Panel Parameters | |
| Screen Size | 55 inch |
| Panel type | OLED |
| Resolution | 1920*1080 |
| Brightness | 200-600cd/㎡ |
| Contrast Ratio | 100000:1 |
| Viewing angle(up/down/left/right) | 178°/178 |
| Onboard interface | |
| Input Interface | USB*1 + HDMI*1+DP*1 + RS232 IN*1 |
| Output interface | RS232 OUT*1 |
| Touch Method | |
| Capacitive Touch screen | Default 10 points Capacitive Touch |
| Power Specifications | |
| Power supply | AC 100-240V |
| Total System Power Consumption | <200W |
| Machine Operating Parameters | |
| running time | 7*12h |
| Screen life | 30000h |
| Operating temperature | 0℃~40℃ |
| Operating Humidity | 20%~80% |
| structure | |
| Material | Aluminum+Tempered Glass |
| external dimensions | 1225.5*765*11.8(mm) |
| Overall dimensions | TBD |
| Installation Method | Optional |
| Net weight | 14KG/17KG |
| Accessories | |
| Adapter, HDMI cable, certificate of conformity and warranty card | |
| other | |
| After-Sales Service | 1-Year Warranty |



If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
|
|
